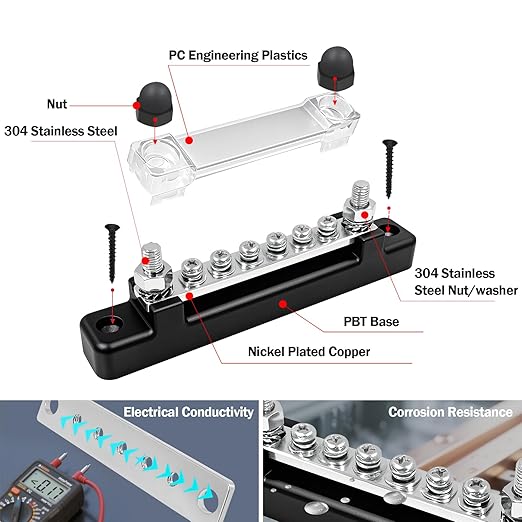

• [PC Protective Case] - Made of polycarbonate. 150A ground block for boat/12v power ground terminal stud/12v 150a automotive ground bus has the advantages of good insulation, good heat resistance, good corrosion resistance and high mechanical strength to protect barine battery distribution/M6 stud grounding terminal bus bar.
• [Solid Base] - The 150 amp negative bus bar 12v marine base is made of PA66 material. The solid design makes the 150A ground block for boat/48V negative bus bar 12v marine/ boat negative block 12v with cover/ 48v positive terminal battery with cover more unique, more secure and reliable.

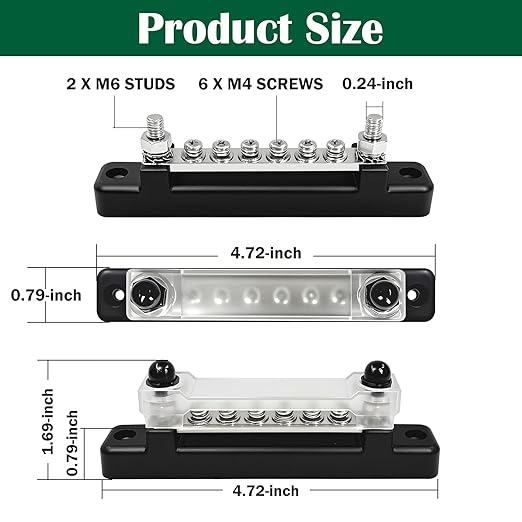

• [High Current] - Copper-nickel plated copper bars and tabs allow currents up to 150A. Continuous rating: 130A AC / 150A DC; Maximum voltage: 300V AC / 48V DC; Terminal screws: M4 x 6, Terminal studs: M6 x 2.Tips:This 150A 12v power distribution block is designed for a single type of electrode connection. We have included positive and negative stickers to help you distinguish whether the busbar is configured for positive or negative connections based on your requirements,

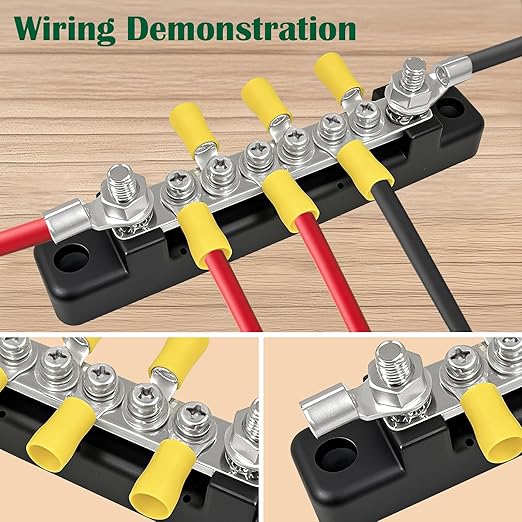

• [Simple installation] - The 6 post bus bar/ground block 12v marine/48V automotive ground bar/negative bus bar 12v marine is easy to install. Use M4 screws to fix it in place through the two screw holes on both ends of the terminal. The electrical_distribution_board 12v for marine battery systems connector works well and you can choose to connect 6 separate devices.
• [Battery Bus Bar 12v Package] - Copper bus bars and stainless nuts set/marine terminal bus bar 150A /positive and negative distribution block/m6 post marine power and battery terminal block (marine dc bus bar 12v at converter) * 1, M4 screws * 6, M6 stude * 2, Yellow terminal * 8, distinguish positive/negative stickers(black/red) and 1 protective cover/the protective cover is made of PC to prevent accidental electrical short circuit.

Overview

• Current Rating : 150 Amps
• Connector Type : Screw
• Number Of Contacts : 6
• Mounting Type : Panel Mount
• Material : Copper, Polybutylene Terephthalate (PBT), Polycarbonate (PC), Stainless Steel
• Color : 150A - 2 Posts + 6 Screws
• Brand : LENKRAD
• Voltage : 300 Volts
• Number Of Poles : 6
• Manufacturer : Ocean River
