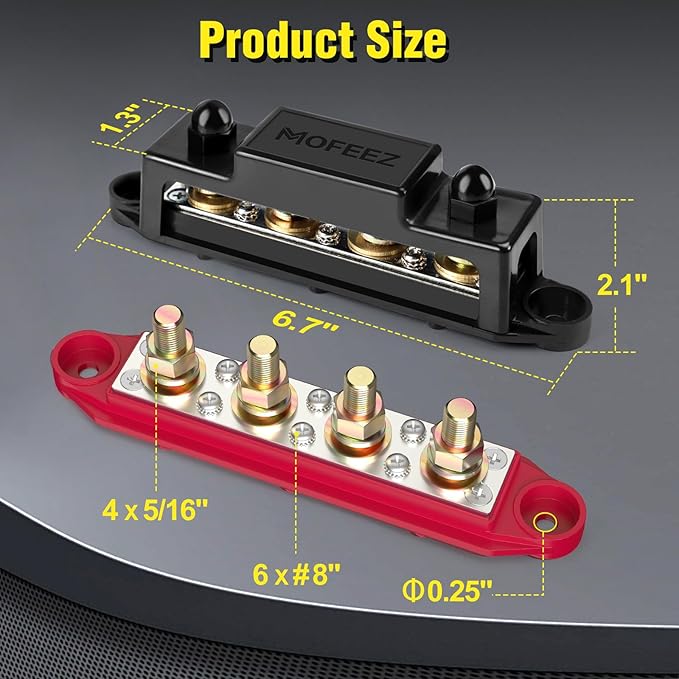

Basic Parameters --- 6*#8 stainless steel terminal screws, 4*5/16" studs. The dimensions: 6.7"Lx1.3"Wx2.1H".
Operating Voltage/Amperage range --- Max voltage: 48VDC. Max continuous amperage: 250A for the entire connection. Maximum intermittent: 20A for each connection (less than 1 minute). So whether your working on a boat, a car, or an RV, we've got you covered.

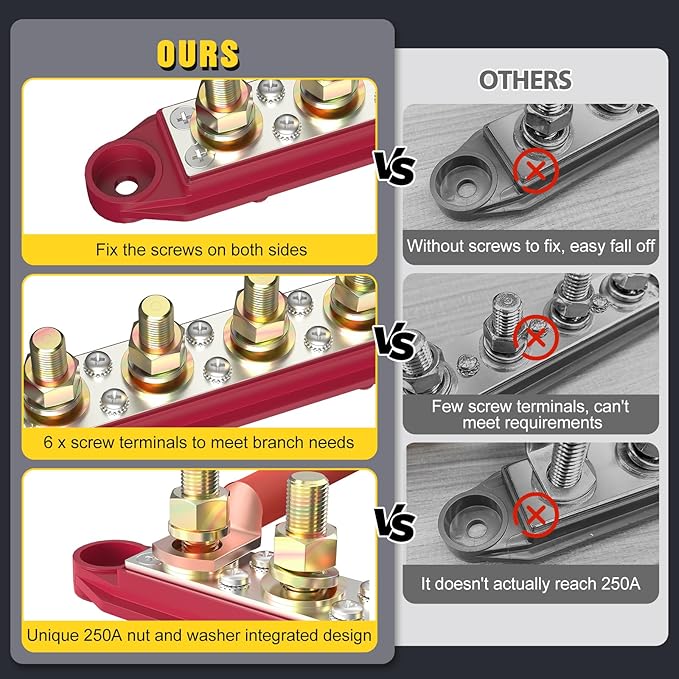

Built for Safe --- Nickle plated brass busbar plates offer low resistance, maximum conductivity, and corrosion protection. The nylon nuts connect to two external studs to prevent accidental short circuits. A removable Nylon cover keeps metal components from making contact with anything. The insulated nylon base is flame-retardant.
Distribute Power More Efficiently --- Provides several large gauge connections for running a dedicated ground to the battery and offers more minor gauge connections for lower voltage.
Wide Applications --- Mofeez bus bar is an excellent circuit collection wire Harness in the car, RV, yacht, caravan, and ship power system. The busbar holds wide cables securely to keep the wires neat.

Overview

Current Rating : 250 Amps
Item Pitch : 0.31 Inches
Connector Type : Screw
Number Of Contacts : 8
Mounting Type : Panel Mount
Material : Nylon, Stainless Steel
Color : Black
Brand : MOFEEZ
Voltage : 48 Volts
Number Of Poles : 4
