About This

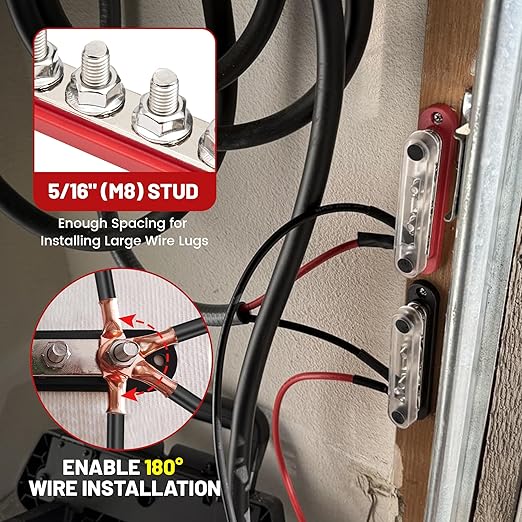

• Function: M8 dual stud blocks enable the utilization of one or multiple connections and wires to terminate heavy-duty cables, akin to battery junction posts used for battery power and ground connectionsl Keeping electrical components, batteries and cables safe and free from moisture, and also prevents solder from leaking during installation
• Protect Covers: Each power distribution block bus bar comes with a protective cover and two nuts, which helps to cover as much of the exposed surface as possible to minimize the risk of accidental contact, prevent short circuits, and enhance the safety of the circuit
• Clean Up Wiring: Marine bus bar helps clean up numerous connections and keep wiring clean and safe; Robust 12 V terminal block come in pairs, includes one positive bus bar (red) and one ground bus bar (black)
• Premium Quality: Power distribution block well-designed and well-protected with covers; Professional material designed, M8 stud and bus bar plate respectively are made of steering steel & tin-plated copper plating w/flame retardant nylon base
• Specification: Stud size: 5/16"(M8) dual stud; Max voltage: 48V DC; Power busbar is able to reach 150A (MAX) when input/output voltage between 12V-48V DC, NOTE: MAX Continuous Current will DECREASE with Temperature & Humidity Effection

Overview

• Current Rating : 150 Amps
• Item Pitch : 0.31 Inches
• Gauge : 2.0
• Connector Type : Screw
• Number Of Contacts : 4
• Mounting Type : Rack Mount
• Material : Copper
• Brand : RED WOLF
• Number Of Poles : 4
• Product Dimensions : 2.9"W x 2.7"H
